Electric Lifting Unit – EL Series

Short Description:

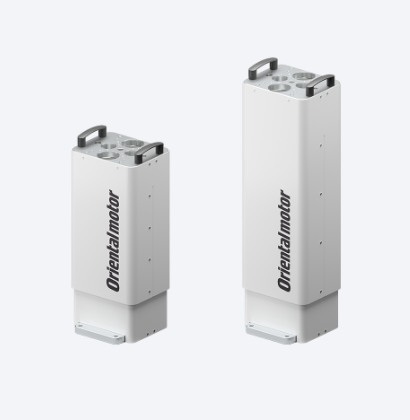

The Electric Lifting Unit EL Series is a product that can be combined with robots to extend their vertical motion range. Featuring high rigidity and high precision, it offers a variety of models with a stroke range of 50～300 mm, helping to reduce the design, assembly and commissioning time of equipment.

Stroke: 50/100/200/300 mm

Drive Motor: Equipped with battery-less absolute encoder AZ Series (DC input)

Send email to us

Product Detail

Product Tags

Main Category

Electric lifting unit / Robot lifting unit / Z-axis lifting unit / Electric cylinder / Ball screw actuator / Vertical motion system / Robot lifting column / Electric lifting device

Application

Features

A lifting unit that extends the motion range of robots

Reduces the design, assembly and startup time of equipment

High rigidity & high precision

Stroke: 50/100/200/300 mm

Product Details

Reduces Equipment Design, Assembly and Commissioning Time

Robots or loads can be directly mounted on the unit body. There is no need for users to design external guide rails or prepare components by themselves, thus helping to shorten equipment startup time.

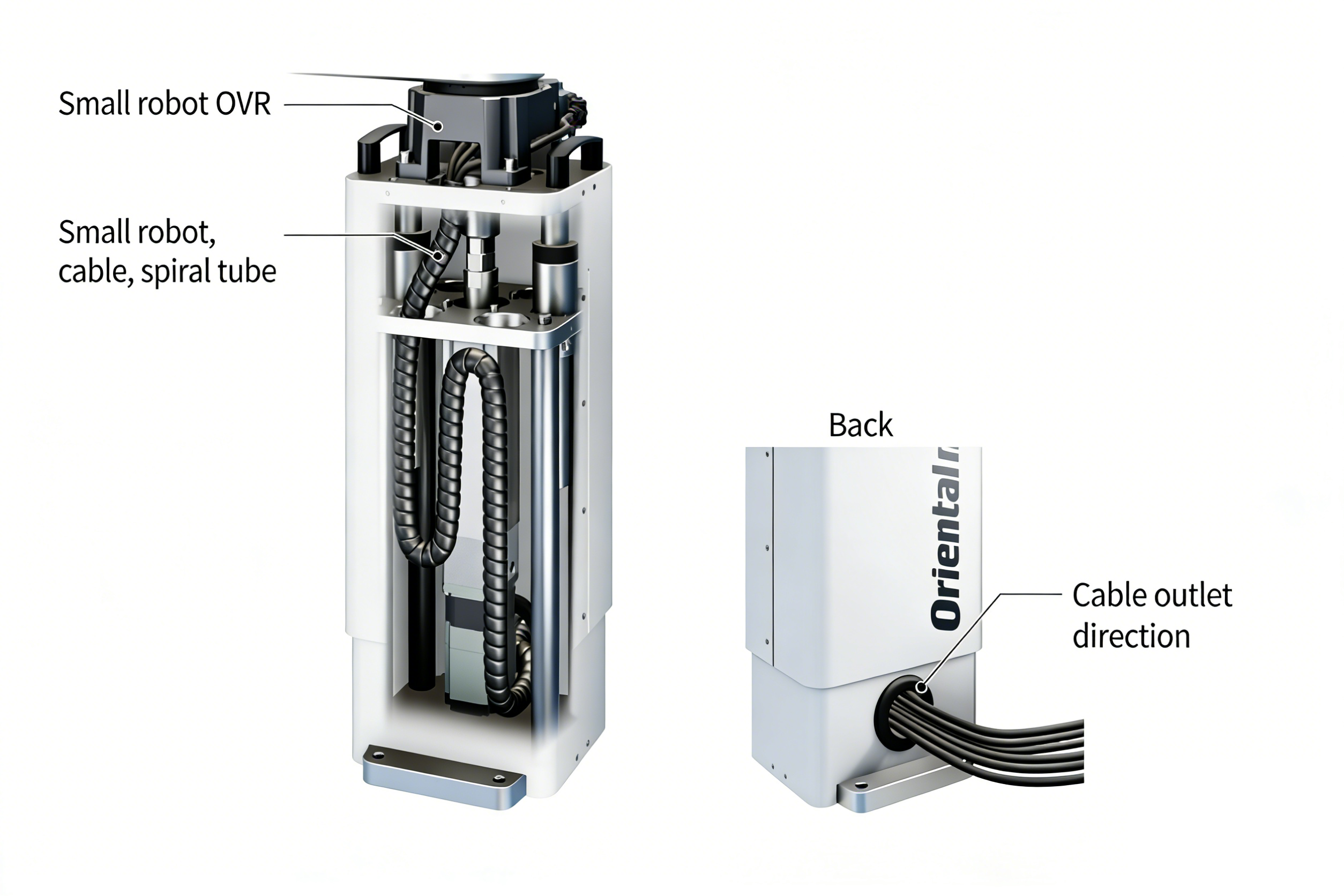

Internal cable storage

Cables of the robot can be threaded into the electric lifting unit for organization through the opening on the top of the unit body.

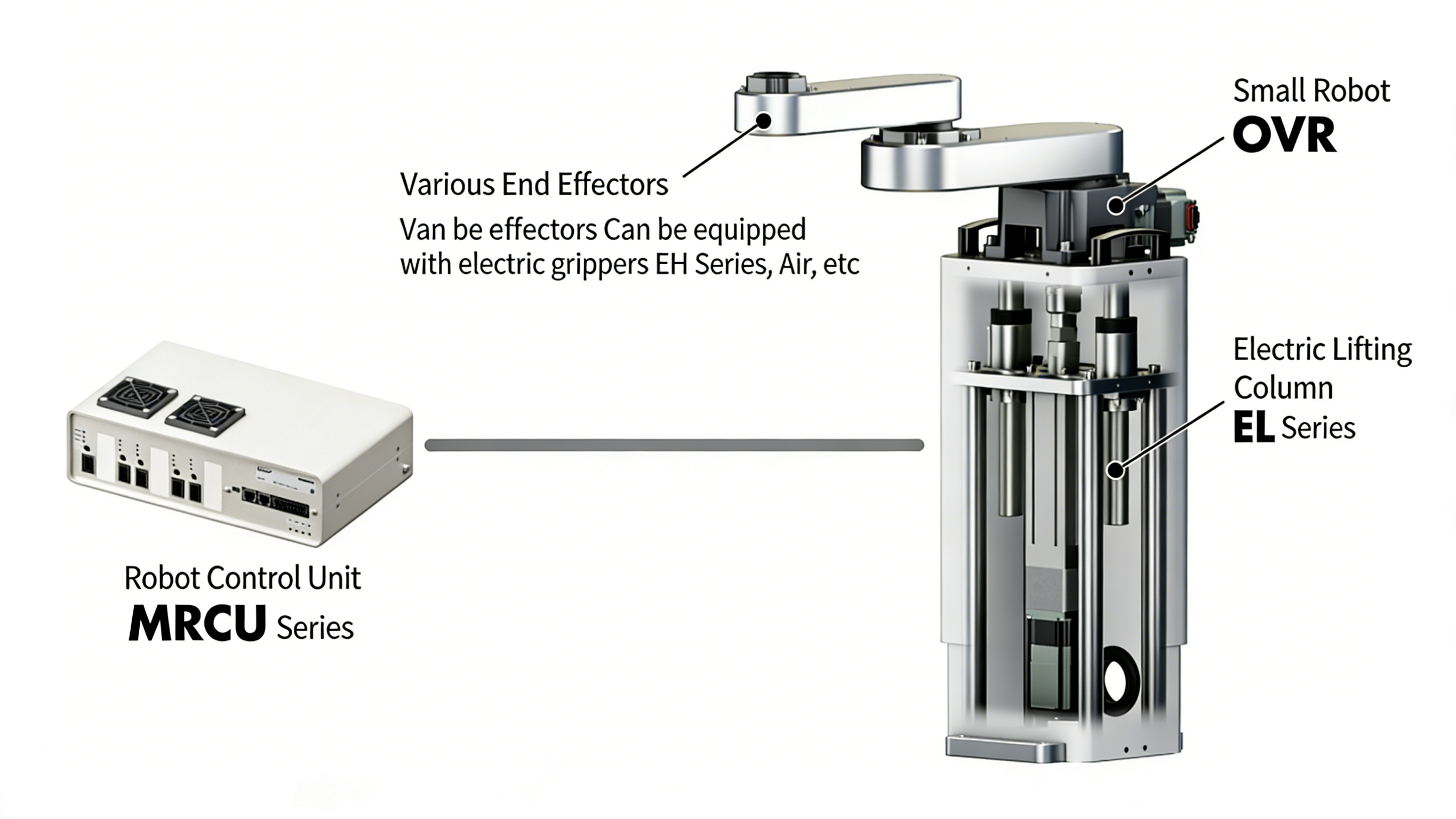

One Robot Controller Can Control a Robot + Up to Two Axes of Accessories

The Robot Controller MRC01 and Robot Controller Unit MRCU Series can not only control robots but also up to two axes of accessories equipped with the AZ Series.

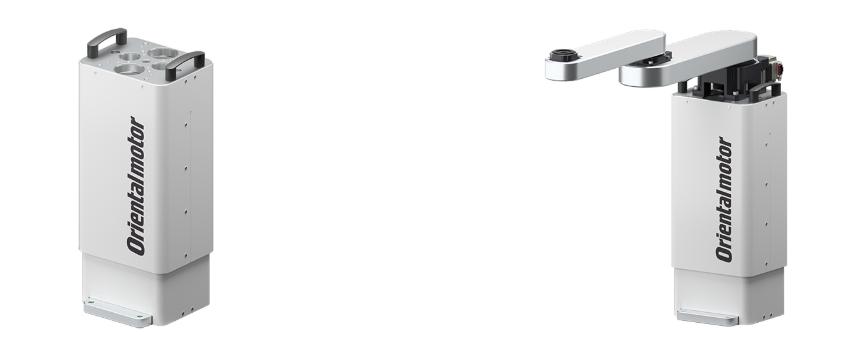

For example, a small robot OVR + an electric gripper EH Series + an electric lifting unit can be used in combination, and the whole system can be controlled by a single robot controller. In addition, for SCARA robots, the lifting axis can also be included in the robot's control objects. Therefore, one robot controller can control one SCARA robot + one electric lifting unit + up to two more axes of accessories equipped with the AZ Series.

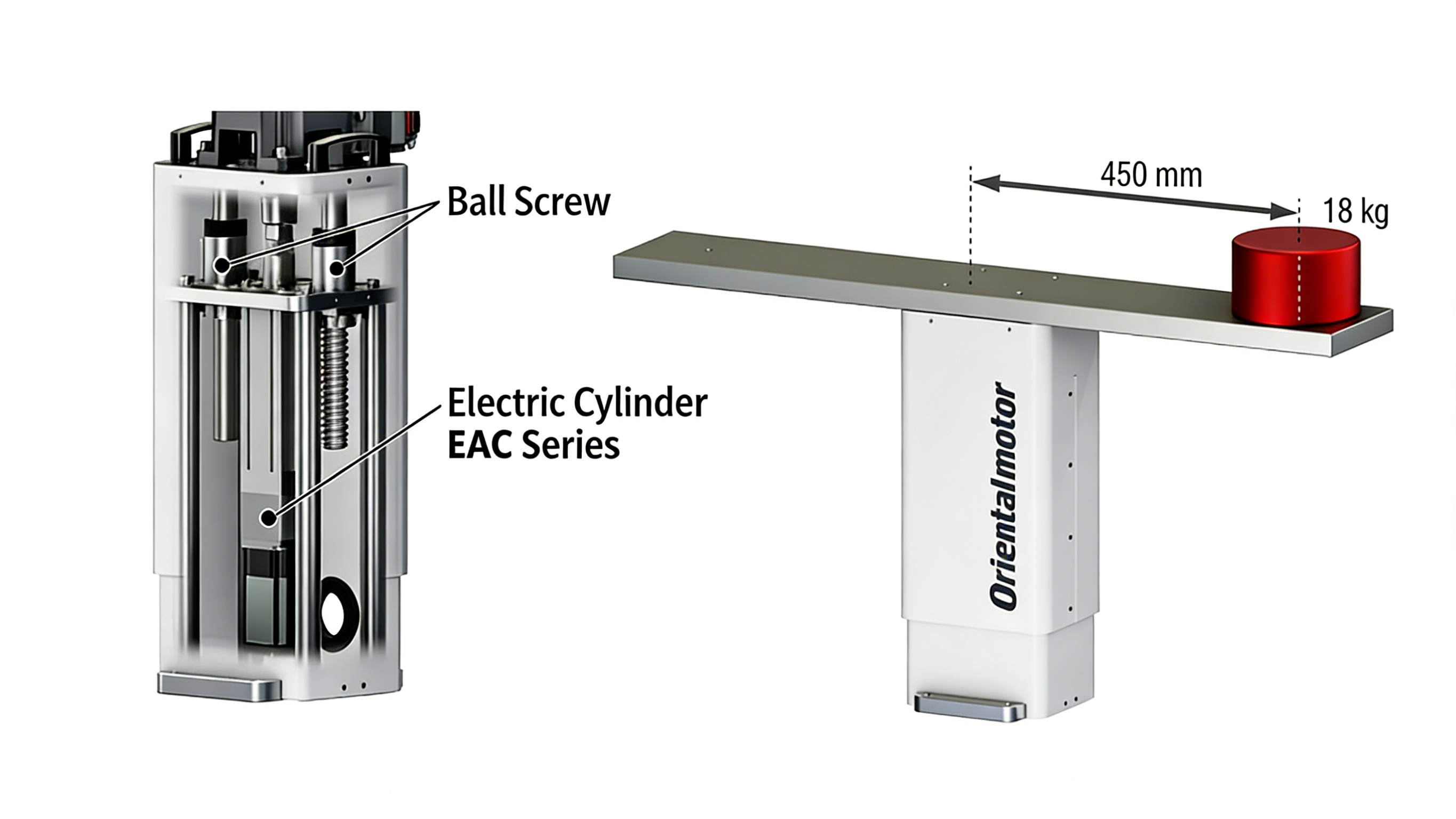

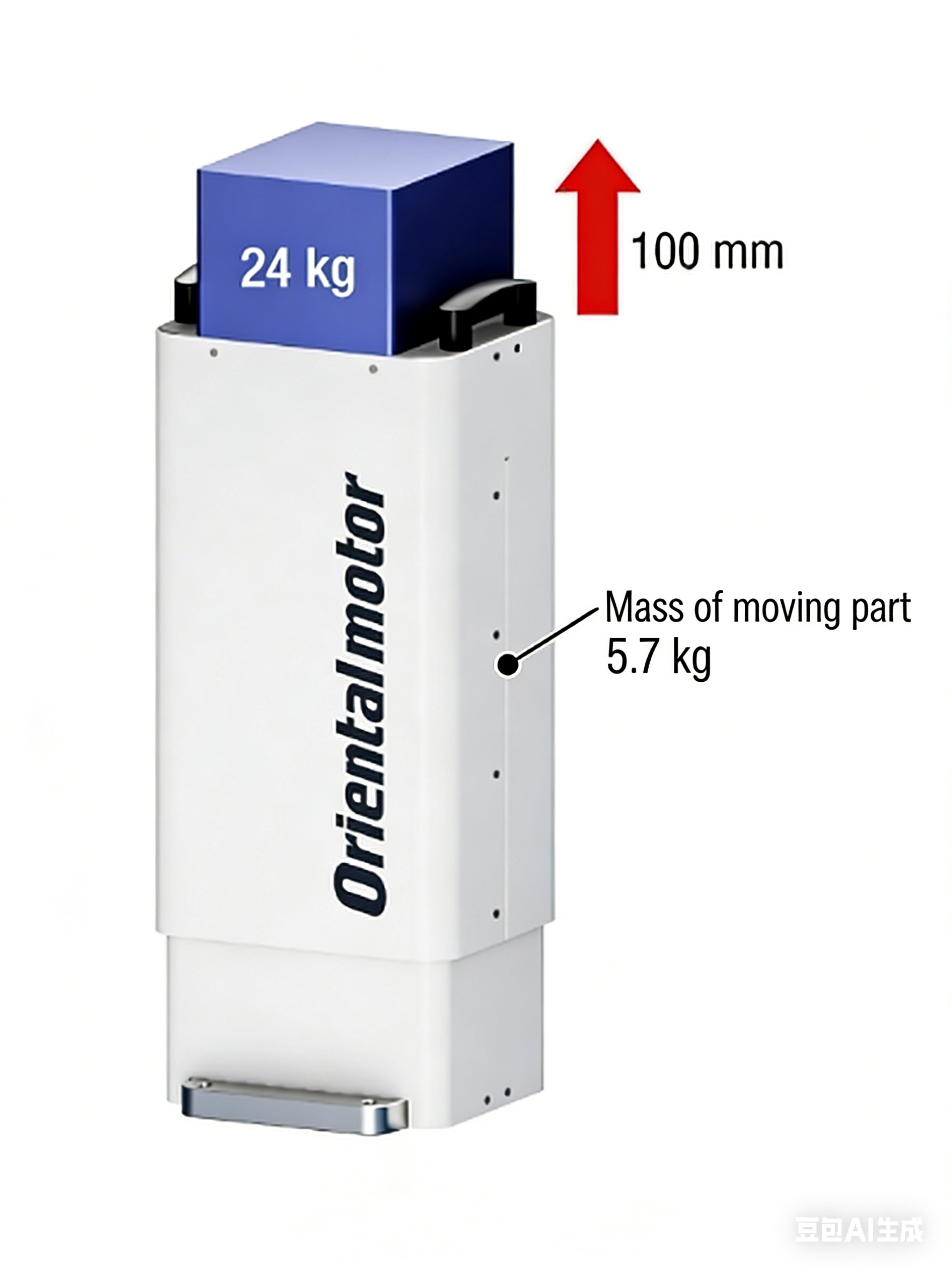

High Rigidity, High Precision and High Allowable Moment of Inertia Achieved by Ball Screw

Excellent load capacity for allowable moment of inertia is achieved through the use of a high-rigidity ball screw. The maximum allowable moment of inertia load is 80N·m, making it ideal for combination with SCARA robots.
