Van der Waals suction cup – VFC

Short Description:

VFC van der Waals force suction cups are inspired by the observation and imitation of the microscopic characteristics of geckofeet. Through special polymer materials and μm-level surface micro-molding processes, the suction cups can generate strong intermolecular forces with the surface of various objects to absorb The strength can reach 0.5kg/cm².Due to its special adsorption mechanism, no power supply, air supply or programming is required, it is simple and reliable, and can adsorb porous workpieces even in normal use in a vacuum environment, which greatly expands the application scope of automation equipment.

Send email to us

Product Detail

Product Tags

Main Category

Pneumatic Components / Vacuum Components / Robot End Effectors / Grippers / Automation Handling Equipment / Van der Waals Suction Cups / Non-Destructive Grippers / Semiconductor Handling Components / Cleanroom Automation Parts

Application

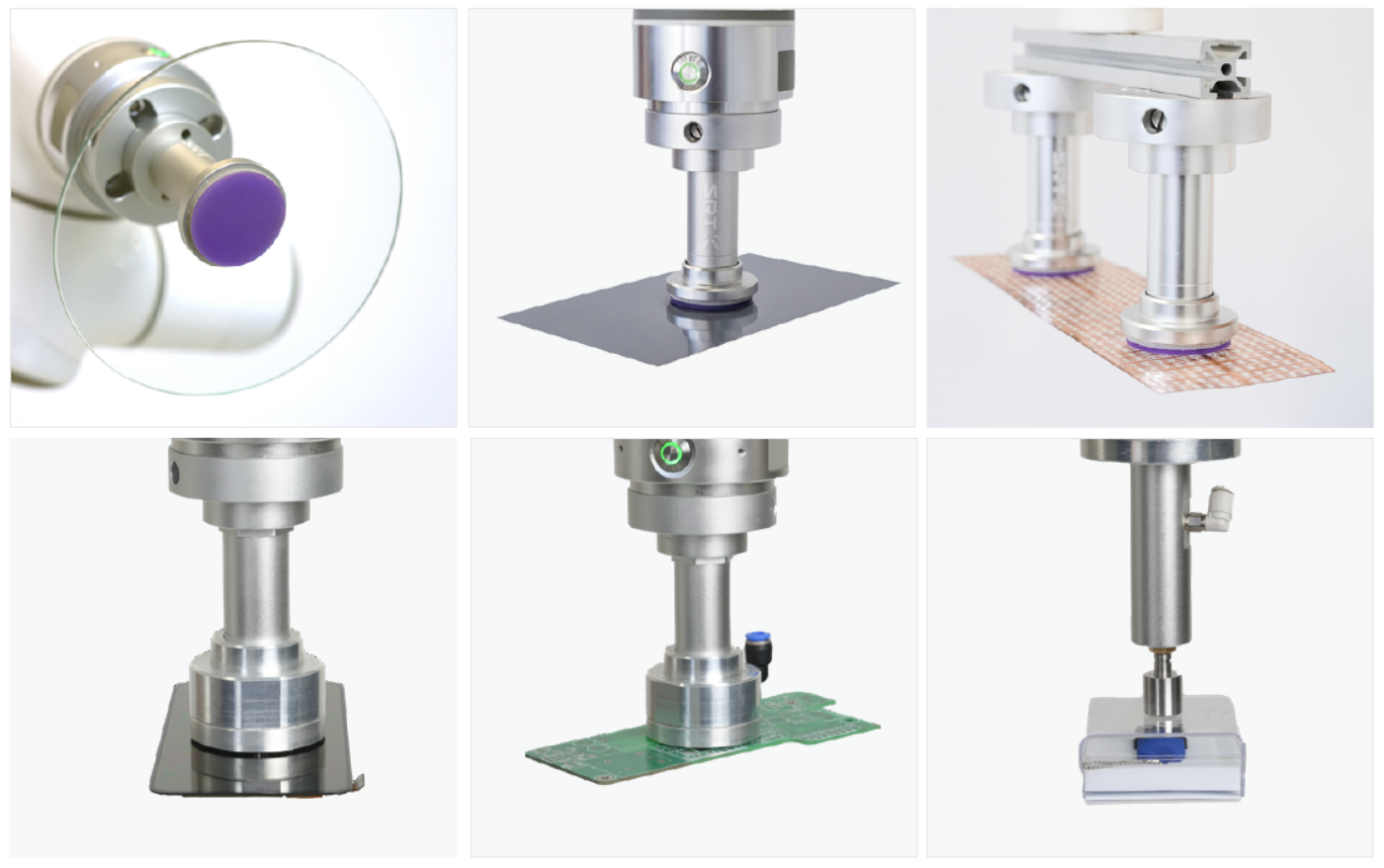

VFC products are widely used in semiconductor, optical and other high‑precision fields. They are ideal for high‑accuracy, non‑damaging and stable suction and handling applications. Meanwhile, they overcome the strict pressure differential requirement of traditional suction cups and achieve reliable adhesion even in vacuum environments.

Features

Flexible & Adaptive, Non-Destructive Handling
- Bionic/polymer materials gently adapt to smooth surfaces
- Zero‑damage handling for wafers, lenses and precision parts

For High‑Gloss Porous Metal Parts & PCBs

No sealing or pressure difference required
Ideal for vacuum processes, porous metal parts and bare PCBs

Zero External Power, Plug‑and‑Play

Powered solely by van der Waals force, no air/power supply needed
Compact, quick‑install design for space‑limited workstations

Traceless Adhesion, Clean & Contamination‑Free

Particle‑free, residue‑free contact adhesion
Cleanroom‑safe, boosts yield for precision electronics and optics

Item	Silicone Type (VFC-D)	Polyester Rubber Type (VFC-A)
Suction Cup Type	Silicone Type (VFC-D)	Polyester Rubber Type (VFC-A)
Adhesion Mechanism	Bionic Setae Structure Contact Adhesion	Bionic Setae Structure Contact Adhesion & Molecular Contact Adhesion
Material Type	Silicone Rubber	Polyester Rubber / Customizable Anti-Static Version (10⁹ Ω)
Material Hardness	SHA45	SHA68
Operating Temperature (°C)	-30 ~ 100; Instant failure temperature > 220	0 ~ 50; Instant failure temperature > 100
Service Life *	≥ 200,000 cycles (under ideal conditions)	≥ 1,000,000 cycles (under ideal conditions)
Typical Normal Adhesion Strength *	4 N/cm² (Preload 20N, hold for 2s)	33 N/cm² (Preload 50N, hold for 2s), adjustable
Standard Models	[VFC-M01-D20], [VFC-M01-D30], [VFC-M01-D40]	[VFC-AA1106], [VFC-AA1106-A], [VFC-B01-AN4329]
Notes	* Service life tested under ideal conditions: room temperature, clean environment, smooth workpiece, regular cleaning. * Adhesion strength is closely related to test conditions such as detachment method, preload per unit area, and detachment speed. Test conditions for normal adhesion strength: smooth glass surface; VFC-D detached at 500 mm/min, VFC-A detached at 720 mm/min. Adhesion performance may decrease on low-energy surfaces (e.g., anti-stick coated surfaces).

Specification Parameter

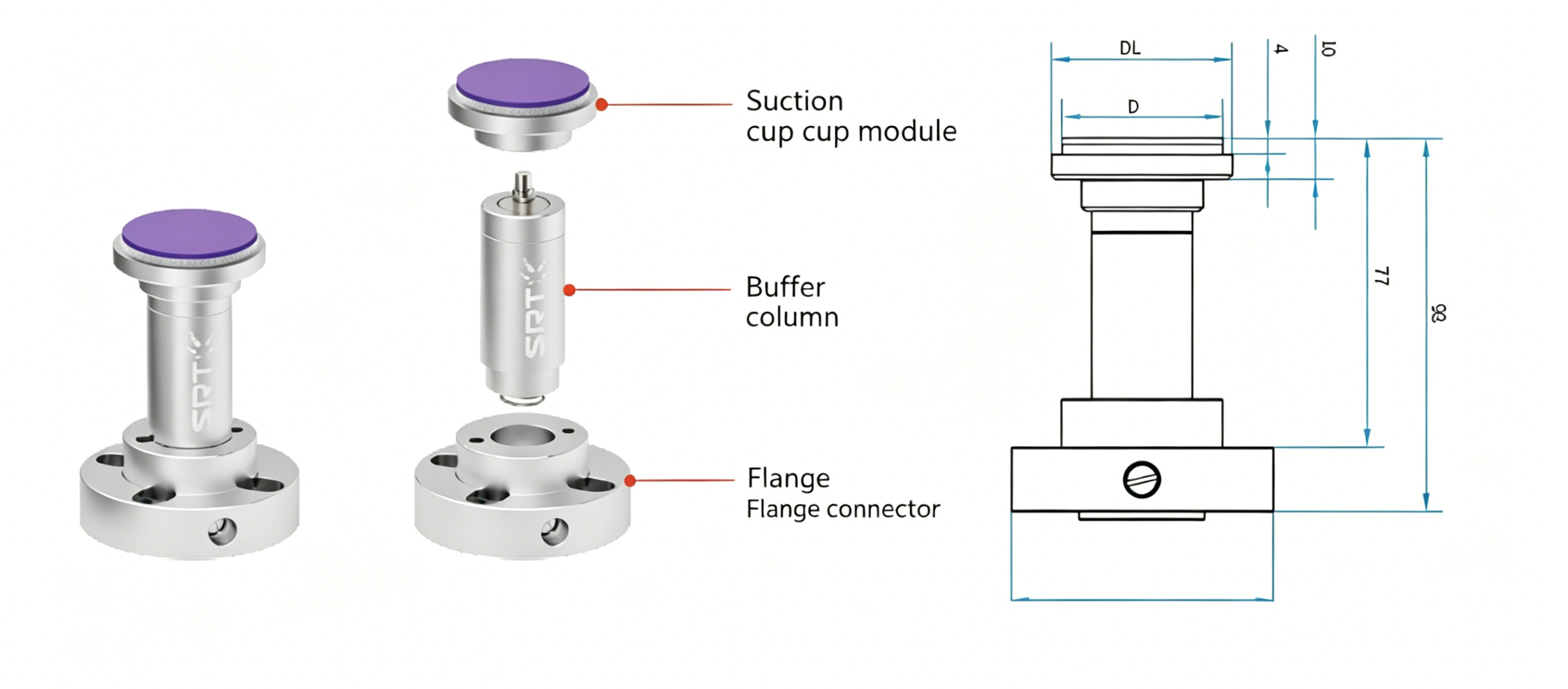

Item	VFC-M01-D20	VFC-M01-D30	VFC-M01-D40
Model	VFC-M01-D20	VFC-M01-D30	VFC-M01-D40
D / mm	20	30	40
DL / mm	25	35	45
Max Effective Load / g	250	560	1000
Max Instant Detachment Force / N	12.5 ± 1.5	28.0 ± 2.5	50.0 ± 5.0
Preload / N	1.5–20	2.5–30	5–40
Weight / g	270	280	290
Suction Unit Material	Silicone Rubber	Same as left	Same as left
Operating Temperature / °C	-30 ~ 100; Instant failure temperature > 220	Same as left	Same as left
Service Life	≥ 200,000 cycles (under ideal conditions)	Same as left	Same as left
Cleaning Method	1. Silicone dust removal roller; 2. Alcohol (≥ 95%) + lint-free cloth	Same as left	Same as left
