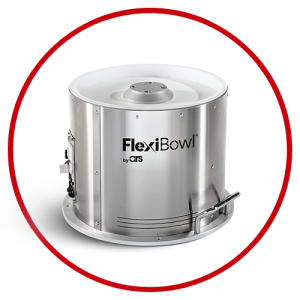

FlexiBowl Parts Feeding System – FlexiBowl 800

Short Description:

The FlexiBowl Solution is the result of our long-standing experience on flexible systems for precision assembly and parts handling, gained in a wide range of industries. Aconstant cooperation with clients and commitment to RED, make ARS the ideal partner to meet every production requirement. We are committed to achieve the highest quality and results.


  • Recommended Part Size: 60<x<250mm
  • Recommended Part Weight: <250gr
  • Max Payload: 7kg
  • Backlight Area: 404x325mm
  • Product Detail

    Product Tags

    Main Category

    Flex Feeder System / Flex Feeders Flexible Feeder / Flexible Feeding Systems / Flexible Parts Feeders / Flexibowl Parts Feeding System

    Application

    The FlexiBowl Solution is the result of our long-standing experience on flexible systems for precision assembly and parts handling, gained in a wide range of industries. A constant cooperation with clients and commitment to RED, make ARS the ideal partner to meet every production requirement. We are committed to achieve the highest quality and results.

    how flexbowl system application

    Features

    FLEXIBOWL FIVE SIZES TO MEET ALL YOUR PRODUCTION REQUIREMENTS

    Flexbowl parts feeding system

    High Performance

    7 Kg Max Payload

    Reliable and Lean Design

    Low Maintenance

    Intuitive Programming

    Works in Extreme Environments

    Ready to Ship

    Suitable for Tangly and Sticky Parts

    Specification Parameter

    flexibowl 800

    PRODUCT RANGE

    Recommended Part Size

    Recommended Part Weight

    Max Payload

    Backlight Area

    Recommended Linear Hopper

    Pick Height

    Weight

    FlexiBowl 200

    1<x<10mm

    <20gr

    1kg

    180x90.5mm

    1➗5 dm3

    270mm

    18kg

    FlexiBowl 350

    1<x<20mm

    <40gr

    3kg

    230x111mm

    5➗10 dm3

    270mm

    25kg

    FlexiBowl 500

    5<x<50mm

    <100gr

    7kg

    334x167mm

    10➗20 dm3

    270mm

    42kg

    FlexiBowl 650

    20<x<110mm

    <170gr

    7kg

    404x250mm

    20➗40 dm3

    270mm

    54kg

    FlexiBowl 800

    60<x<250mm

    <250gr

    7kg

    404x325mm

    20➗40 dm3

    270mm

    71kg

    The Benefits of the Circular System

    The linear dropping, the feeder separating and the robot picking are performed simultaneously in specific sectors of the FlexBowl surface. A quick feeding sequence is guaranteed.

    FlexiBowl is a flexible parts feeder that is compatible with every robot and vision system. Entire families of parts within 1-250mm and 1-250g can be handled by a single FlexiBowl replacing a whole set of vibrating bowl feeders. Its lack of dedicated tooling and its easy-to use and intuitive programming allows quick and multiple product changeovers inside the same work shift.

    A Versatile Solution

    FlexiBowl solution is highly cersatile and able to feed parts with every: Geometry, Surface, Material

    Surface Options

    The Rotary Disc is acailable in various colours, textures, degrees of surface adhesion

    flexibowl parts options
    how flexbowl system works
