Danikor Flexible Feeding System – Multi Feeder System

Short Description:

Danikor’s flex feeder provides flexible parts feeding for any automated application featuring varied parts and frequent changeovers. One flex feeder can replace several conventional feeders on your line. It holds components of arbitrary shapes and materials. Visual part recognition frees you from the limits of mechanical feeding, speeding up configuration and eliminating the need for manual feeder calibration. flex feeder is suitable for all robots automated assembly applications in the automotive, cosmetic, electronic, and medical industries.

Send email to us

Product Detail

Product Tags

Main Category

Flexible Feeding System /Adaptive Part Feeding /Intelligent Feeding Device/Intelligent actuator/Automation solutions / Vibratory Bowl (Flex-Bowl)

Application

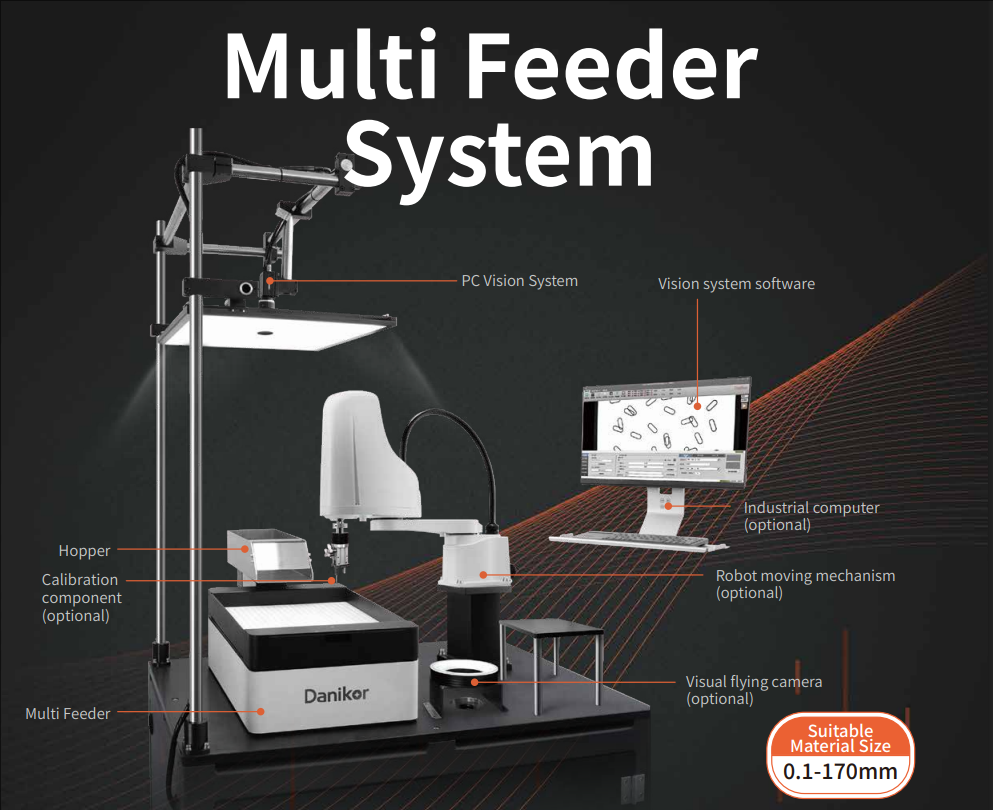

Flexible feeding systems accommodate product variants on the assembly line. A complete set flexible feeder systems solutions includes a flex feeder to handle and feed the part, a vision system to locate the part for the next process, and a robot.This type of system can overcome the high cost of traditional parts feeding by loading a wide variety of parts in various sizes, shapes and orientations.

Features

Diversity & compatibility
Applicable to a variety of complex special-shaped materials.

Plate customization
Customize different type plate for different type materials.

Flexible
Suit for multi variety material and can change material easily Material clearing function is optional choose.

High "screen ratio"
Smaller floor area and large usable area of the plate surface.

Vibration isolation
Avoid mechanical vibration interference and improve working cycle time.

Durable
Good quality comes from 100 million durability tests of core parts.

Specification Parameter

Model		MTS-U10	MTS-U15	MTS-U20	MTS-U25	MTS-U30	MTS-U35	MTS-U45	MTS-U60
Dimension (LWH)（mm）		32182160	360105176	219143116.5	262180121.5	298203126.5	426.2229184.5	506.2274206.5	626.2364206.5
Pick window (length by width)（mm）		806015	1209015	16812220	21115925	24718230	28022540	36027050	48036050
Weight/Kg		about 5kg	about 6.5kg	about 2.9kg	about 4kg	about 7.5kg	about 11kg	about 14.5kg	about 21.5kg
Voltage		DC 24V
Maximum current		5A					10A
Movement Type		Move back and forth/side to side,Flip,Center(Long side),Center(Short side)
Operating frequency		30~65Hz		30~55Hz			20~40Hz
Sound Level		<70dB（without collision sound)
Permissible load		0.5kg					1kg	1.5kg	2kg
Maximum part weight		≤ 15g					≤ 50g
Signal interaction	PC	TCP/IP
	PLC	I/O
	DK Hopper	/		RS485
	Other Hopper	/		I/O

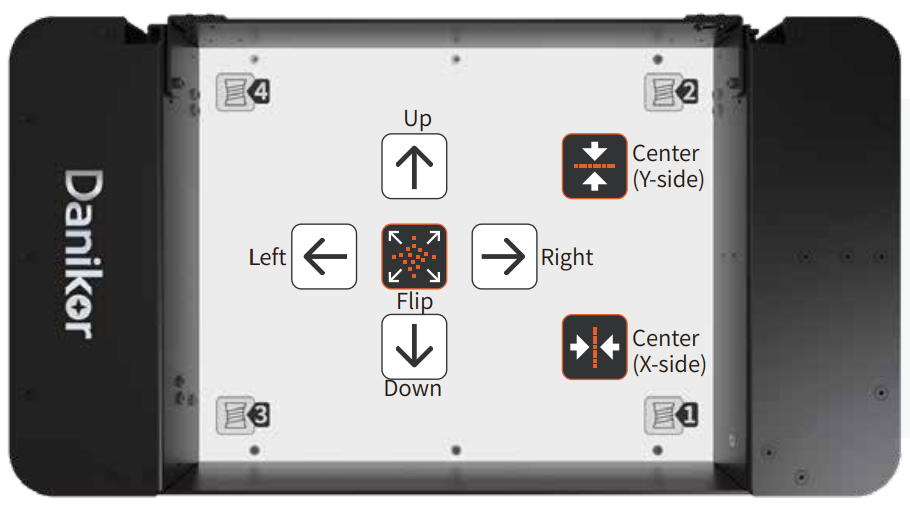

Vibration Mode

The multi-feeder can control the vibrator by controlling the phase, power and frequency. By adjusting the direction of the material through electromagnetic vibration, the movement type showed on the feeder picture can be realized.
