Servo Series Actuator – Z-Mod-SE-102-40SE Intelligent Electric Actuator

Motor power/voltage: 400 W / DC 48 V

Rated torque: 1.27 N·m

Repeatability: ±0.01 mm

Travel range: 50–1250 mm (in 50 mm increments)

Motor rated speed: 3000 rpm

Send email to us

Product Detail

Intelligent Electric Actuator /Smart Electric Actuator / Electric Actuator /Intelligent Actuator

- Higher placement accuracy can be achieved by adjusting parts and aligning them, making the operation more reliable.

- Torque/motion modes can be performed simultaneously without resetting.

- The push mode can detect the pushed object height, making Z-Mod's performance even more intelligent.

Highly integrated system

Innovative design that eliminates the need for sensors, while integrating the motor.

Controller within the module for optimal use of space and stroke.

Easy-to-use software

No need to build a motion platform, as Z-Arm series control software enables user-friendly operation.

The simplified programming environment allows even inexperienced users to work collaboratively.

Simplified but not simple

Servo series: no external sensors required

Cost-effective

Z-Mod offers industrial-grade performance at an affordable price, with more personalized services.

Motor power/voltage	400W/DC48V
Rated torque	1.27N·m
Ball screw lead	5mm	10mm	20mm	30mm
Maximum speed	250mm/s	500mm/s	1000mm/s	1600mm/s
Rated acceleration (Note 1)	0.3G	0.3G	0.3G	0.3G
Maximum payload capacity horizontal/wall-mounted	90kg	70kg	35kg	26kg
Vertical Mount	36kg	22kg	11kg	18kg
Rated thrust	1436.3N	718.2N	359.1N	224.4N
Stroke range	50~1250mm（50mm Interval）
Motor rated speed	3000RPM

Note 1：1G=9800mm/sec²

Repeatability	±0.01mm
Driving mode	Ball screw Φ16mm turn C7 grade
Dynamic allowable torque (Note 2)	Ma：141N·m；Mb：141N·m；Mc：288.3N·m
Load allowed extension length	Under 500mm
Sensor	①-LS；②HOME；③+LS，NPN，DC24V
Sensor cable length	2m
Base material	Extruded aluminum profiles, white gloss
Installation plane accuracy requirement	Flatness below 0.05mm
Working environment	0~40℃，85％RH（non-condensing）

Note 2: Value at 10,000km working life

Sensor wiring diagram

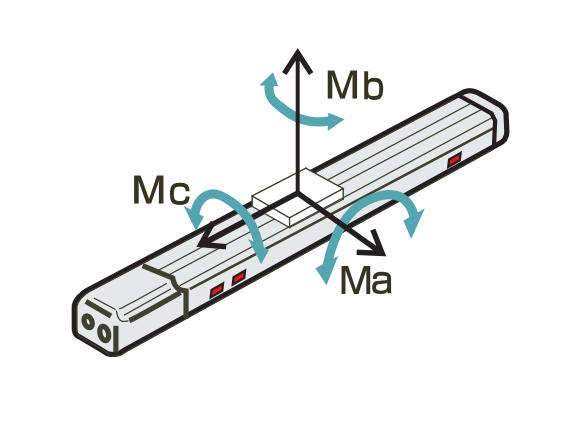

Torque Definition

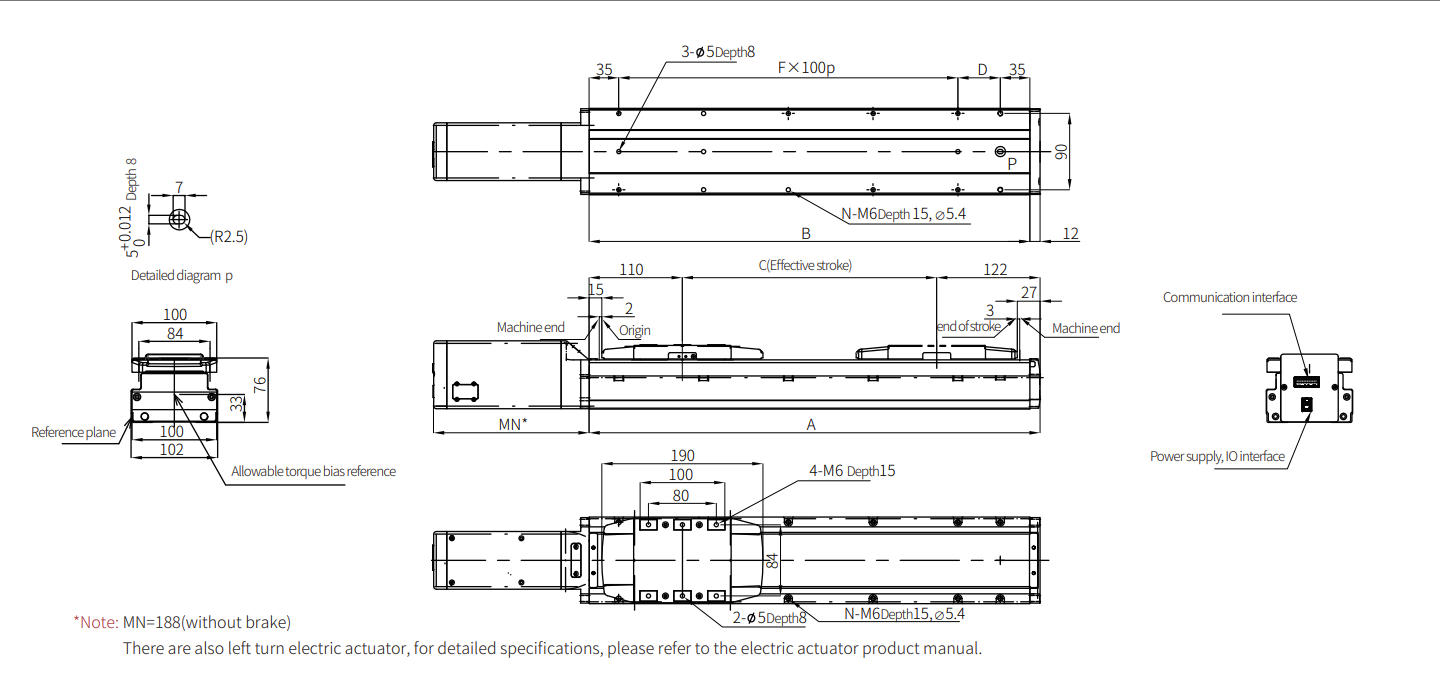

Dimensional diagram code explanation · quality Unit：mm
