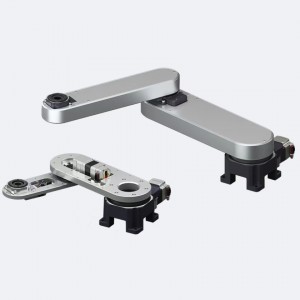

OVR Series 3-axis SCARA Robots (Full 360° Type)
Main Category
Industrial robot arm /Collaborative robot arm / SCARA robot / 3-axis SCARA robot / Small SCARA robot / flat SCARA robot / Horizontal transport robot
Application
The OVR Series SCARA 3-axis small horizontal transport robot features a simple mechanism that can be easily controlled and constructed cost-effectively. SCARA (Selective Compliance Assembly Robot Arm) uses a parallel Z-axis combined with compliant X-Y axes to provide accurate movement in confined areas. The pedestal mount creates a small footprint and the SCARA robot is typically faster than a Cartesian Robot. Control with the MRCU Integrated Robot Controller & Drivers.
Features
- Approach narrow spaces
- (compared to general SCARA robots)
The use of mounting brackets expands the operating range in the vertical direction
Simple dust-resistant structure - available
Transportable mass 3 ~ 10 kg
Related Products
Specification Parameter
SCARA (Selective Compliance Assembly Robot Arm) uses a parallel Z-axis combined with "compliant" X-Y axes to provide accurate movement in confined areas. The pedestal mount creates a small footprint and the SCARA robot is typically faster than a Cartesian Robot.
The 3-Axis SCARA Robots combined with our MRC robot controllers and MRC Studio Software allow for simple control and performance in a complete robot solution.
Flat SCARA Robot

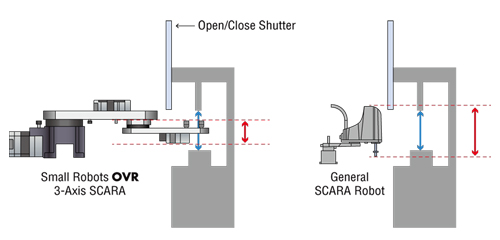

Compared to general SCARA robots, the flat design allows the robot to handle narrow space, such as for attaching and detaching parts to and from equipment.

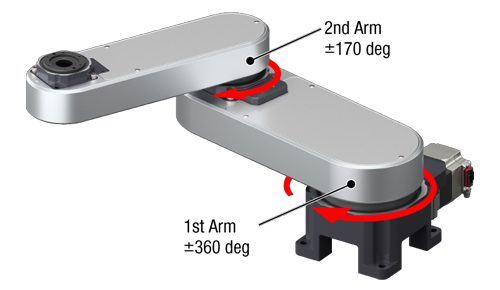

The Full 360° type is capable of omni-directional motion.

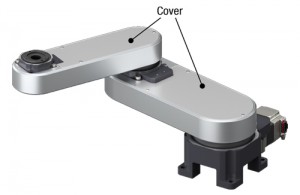

Products equipped with a simple dust cover are available. This cover prevents foreign matter intrusion and reduces cable abrasion.
Both floor mounting and ceiling mounting are available.
| Installation Type | Floor Mounting
|
Ceiling Mounting
|
| Ease of Installation |
Easy |
• Robot needs to be inverted |
| Working Space |
Pallets and other components need to be placed with consideration to the robot installation space
|
Usable space directly under the robot |

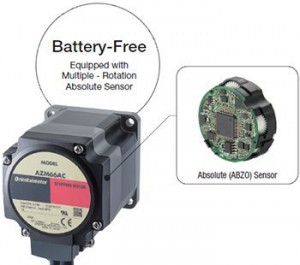

The αSTEP AZ Series (DC input) is used for all axes. No external sensors are required, simplifying the wiring. No battery is needed, so maintenance can be reduced.

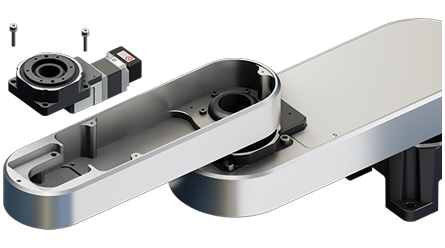

Electric actuators for each axis can be replaced by the customer. Reduces the maintenance burden (cost and time) after installation. Please contact Oriental Motor for replacement motor numbers, prices, and the replacement procedure.
