GRIPPER MODULE SERIES – FPT Two-fingers Translational Gripper
Main Category
FPT Two-fingers Translational Gripper / two-finger gripper / two-finger gripper design / 2 finger gripper / FPT parallel translational gripper / FPT dual-finger linear-motion gripper / FPT 2-finger slide-jaw gripper
Application
The FPT two-finger translational gripper is widely deployed across CNC lathes, machining centers, electronics plants, and automotive assembly lines, where it quietly handles everything from loading raw billets and stacking motor laminations to inserting smartphone batteries and kitting miniature fasteners, while also slipping into medical-device and additive-manufacturing cells to manipulate micro-titer plates or lift fresh 3D-printed parts from build plates.
Feature
T-tooth guide rail. Compact structure and reliable
Compact structure and reliable
Magnetic switch interface
Proximity switch interface
Pipeless connection interface
Ten million maintenance-free operations
Specification Parameter
|
Item (PN) |
Model (Model) |
Single finger stroke (mm) |
Gripping force (N) |
Self Weight (kg) |
Workpiece weight (kg) |
Longest finger length (mm) |
Maximum single finger weight (kg) |
Repeat positioning accuracy (mm) |
IP rating |
|
1.Y13289 |
FPT-40A-1 |
2.5 |
123 |
0.08 |
0.68 |
50 |
0.1 |
0.01 |
40 |
|
1.Y13290 |
FPT-40A-1-SD |
2.5 |
123/132 |
0.11 |
0.68 |
50 |
0.1 |
0.01 |
64 |
|
1.Y13291 |
FPT-40A-1-TEM |
2.5 |
123/132 |
0.08 |
0.68 |
50 |
0.1 |
0.01 |
40 |
|
1.Y13292 |
FPT-50A-1 |
4 |
140/145 |
0.15 |
0.77 |
64 |
0.18 |
0.01 |
40 |
|
1.Y13293 |
FPT-50A-2 |
2 |
290/310 |
0.15 |
1.60 |
58 |
0.18 |
0.01 |
40 |
|
1.Y13294 |
FPT-50A-1-SD |
4 |
140/145 |
0.18 |
0.77 |
64 |
0.18 |
0.01 |
64 |
|
1.Y13295 |
FPT-50A-2-SD |
2 |
290/310 |
0.18 |
1.60 |
58 |
0.18 |
0.01 |
64 |
|
1.Y13296 |
FPT-50A-1-TEM |
4 |
140/145 |
0.15 |
0.77 |
64 |
0.18 |
0.01 |
40 |
|
1.Y13297 |
FPT-50A-2-TEM |
2 |
290/310 |
0.15 |
1.60 |
58 |
0.18 |
0.01 |
40 |
|
1.Y13298 |
FPT-64A-1 |
6 |
250/270 |
0.28 |
1.38 |
80 |
0.35 |
0.01 |
40 |
|
1.Y13299 |
FPT-64A-2 |
3 |
520/565 |
0.28 |
2.86 |
72 |
0.35 |
0.01 |
40 |
|
1.Y13300 |
FPT-64A-1-SD |
6 |
250/270 |
0.35 |
1.38 |
80 |
0.35 |
0.01 |
64 |
|
1.Y13301 |
FPT-64A-2-SD |
3 |
520/565 |
0.35 |
2.86 |
72 |
0.35 |
0.01 |
64 |
|
1.Y13302 |
FPT-64A-1-TEM |
6 |
250/270 |
0.28 |
1.38 |
80 |
0.35 |
0.01 |
40 |
|
1.Y13303 |
FPT-64A-2-TEM |
3 |
520/565 |
028 |
2.86 |
72 |
0.35 |
0.01 |
40 |
|
1.Y13304 |
FPT-80A-1 |
8 |
415-465 |
0.5 |
2.31 |
100 |
0.6 |
0.01 |
40 |
|
1.Y13305 |
FPT-80A-2 |
4 |
860/960 |
0.5 |
4.73 |
90 |
0.6 |
0.01 |
40 |
|
1.Y13306 |
FPT-80A-1-SD |
8 |
415/465 |
0.6 |
2.31 |
100 |
0.6 |
0.01 |
64 |
|
1.Y13307 |
FPT-80A-2-SD |
4 |
860/960 |
0.6 |
4.73 |
90 |
0.6 |
0.01 |
64 |
|
1.Y13308 |
FPT-80A-1-TEM |
8 |
415/465 |
0.5 |
2.31 |
100 |
0.6 |
0.01 |
40 |
|
1.Y13309 |
FPT-80A-2-TEM |
4 |
860-960 |
0.5 |
4.73 |
90 |
0.6 |
0.01 |
40 |
|
1.Y13310 |
FPT-100A-1 |
10 |
660/725 |
0.81 |
3.63 |
125 |
1.1 |
0.01 |
40 |
|
1.Y13311 |
FPT-100A-2 |
5 |
1370/1500 |
0.81 |
7.54 |
115 |
1.1 |
0.01 |
40 |
|
1.Y13312 |
FPT-100A-1-SD |
10 |
660/725 |
0.99 |
3.63 |
125 |
1.1 |
0.01 |
64 |
|
1.Y13313 |
FPT-100A-2-SD |
5 |
1370/1500 |
0.99 |
7.54 |
115 |
1.1 |
0.01 |
64 |
|
1.Y13314 |
FPT-100A-1-TEM |
10 |
660-725 |
0.81 |
3.63 |
125 |
1.1 |
0.01 |
40 |
|
1.Y13315 |
FPT-100A-2-TEM |
5 |
1370-1500 |
0.81 |
7.54 |
115 |
1.1 |
0.01 |
40 |
|
1.Y13316 |
FPT-110A-1 |
20 |
1050-1150 |
2 |
5.25 |
150 |
2 |
0.01 |
40 |
|
1.Y13317 |
FPT-125A-1 |
13 |
1080/1170 |
1.35 |
5.94 |
160 |
2.1 |
0.01 |
40 |
|
1.Y13318 |
FPT-125A-2 |
6 |
2240/2420 |
1.35 |
12.32 |
145 |
2.1 |
0.01 |
40 |
|
1.Y13319 |
FPT-125A-1-SD |
13 |
1080/1170 |
1.55 |
5.94 |
160 |
2.1 |
0.01 |
64 |
|
1.Y13320 |
FPT-125A-2-SD |
6 |
2240/2420 |
1.55 |
12.32 |
145 |
2.1 |
0.01 |
64 |
|
1.Y13321 |
FPT-125A-1-TEM |
13 |
1080/1170 |
1.35 |
5.94 |
160 |
2.1 |
0.01 |
40 |
|
1.Y13322 |
FPT-125A-2-TEM |
6 |
2240/2420 |
1.35 |
12.32 |
145 |
2.1 |
0.01 |
40 |
|
1.Y13323 |
FPT-160A-1 |
16 |
1640/1770 |
2.6 |
9.02 |
200 |
3.5 |
0.01 |
40 |
|
1.Y13324 |
FPT-160A-2 |
8 |
3200/3460 |
2.6 |
17.60 |
190 |
3.5 |
0.01 |
40 |
|
1.Y13325 |
FPT-160A-1-SD |
16 |
1640/1770 |
3 |
9.02 |
200 |
3.5 |
0.01 |
64 |
|
1.Y13326 |
FPT-160A-2-SD |
8 |
3200/3460 |
3 |
17.60 |
190 |
3.5 |
0.01 |
64 |
|
1.Y13327 |
FPT-160A-1-TEM |
16 |
1640/1770 |
2.6 |
9.02 |
200 |
3.5 |
0.01 |
40 |
|
1.Y13328 |
FPT-160A-2-TEM |
8 |
3200/3460 |
2.6 |
17.60 |
190 |
3.5 |
0.01 |
40 |
|
1.Y13329 |
FPT-200A-1 |
25 |
2700/2870 |
5.2 |
14.85 |
240 |
6.5 |
0.02 |
40 |
|
1.Y13330 |
FPT-200A-1-SD |
25 |
2700/2870 |
5.8 |
14.85 |
240 |
6.5 |
0.02 |
64 |
|
1.Y13331 |
FPT-200A-1-TEM |
25 |
2700/2870 |
5.2 |
14.85 |
240 |
6.5 |
0.02 |
40 |
|
1.Y13332 |
FPT-240A-1 |
30 |
4200/4440 |
8 |
21.50 |
280 |
8.5 |
0.04 |
40 |
|
1.Y13333 |
FPT-240A-1-SD |
30 |
4200/4440 |
11 |
21.50 |
280 |
8.5 |
0.04 |
64 |
|
1.Y13334 |
FPT-240A-1-TEM |
30 |
4200/4440 |
8 |
21.50 |
280 |
8.5 |
0.04 |
40 |
|
1.Y13335 |
FPT-300A-1 |
35 |
6000/6260 |
13.5 |
33.00 |
300 |
11.5 |
0.05 |
40 |
|
1.Y13336 |
FPT-300A-1-SD |
35 |
6000/6260 |
17.5 |
33.00 |
300 |
11.5 |
0.05 |
64 |
|
1.Y13337 |
FPT-300A-1-TEM |
35 |
6000/6260 |
13.5 |
33.00 |
300 |
11.5 |
0.05 |
40 |

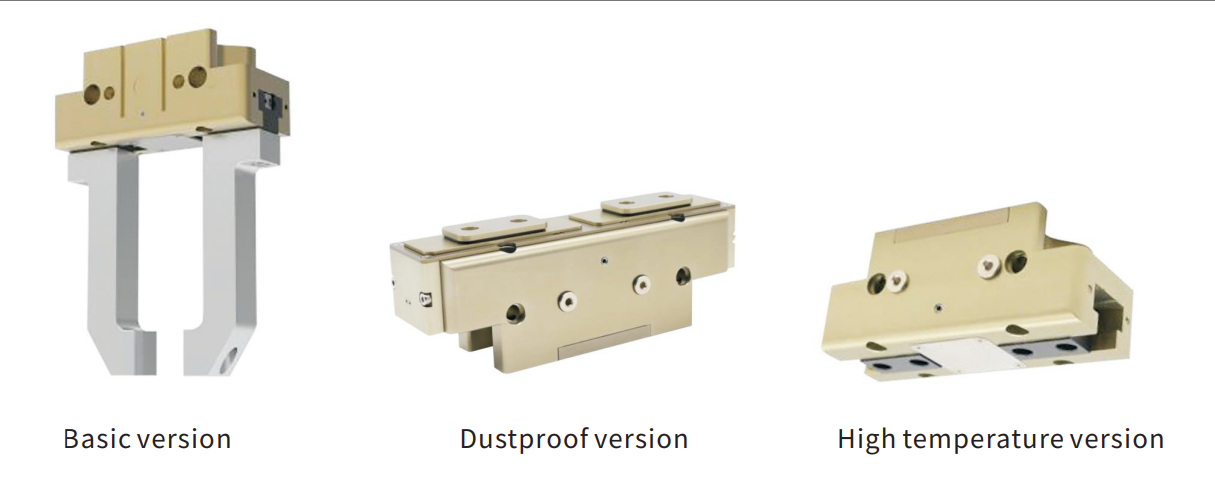

Model explanation:
- SD: Dustproof version - TEM: High temperature version

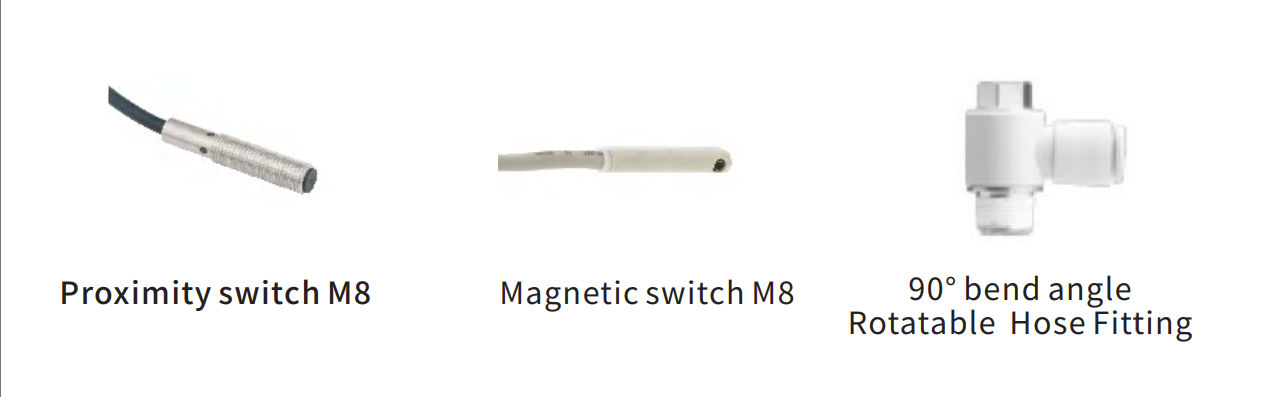

Optional Accessories
