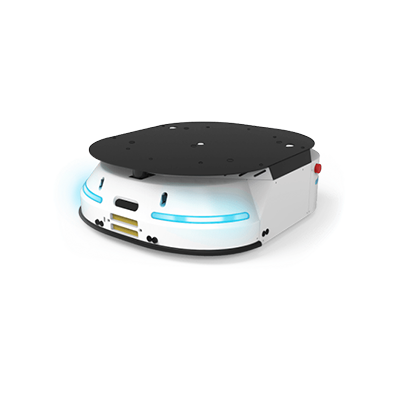

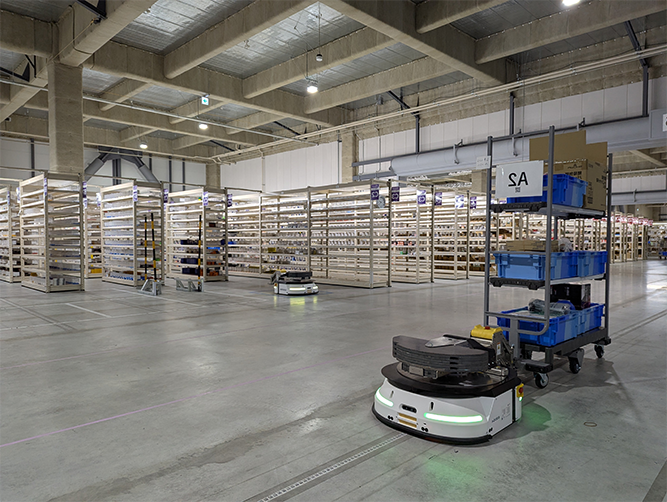

The Lexx 500 is an autonomous mobile robot for material handling and internal logistics automation. It is designed to automate transport processes, with features like autonomous travel, high load - carrying capacity, and the ability to work in various modes such as AMR (autonomous mobile robot) and AGV (automated guided vehicle) modes. It can be used for tasks like towing carts and transporting goods up to 500 kg without major fixed - equipment requirements, making it a key product in the field of industrial automation and intralogistics
Feature
● Can transport up to 500kg - 18 hours of continuous operation when not towing
● Through API integration and I/O integration with LexxHub, it is possible to exchange information with upper-level systems such as WCS, and coordinate operations with elevators, fire shutters, and industrial equipment.
● A next-generation automatic transport robot that does not require fixed equipment. Capable of automatically transporting heavy objects up to 500kg.
● Hybrid control of autonomous travel and high-precision orbital travel - Automatic charging function - Turning radius of 380mm
A next-generation automatic transport robot with high flexibility that does not require fixed equipment.
Specification Parameter
| Category | Item | Specification |
|---|---|---|
| Basic Specifications | Size | 707 (L) x 645 (W) x 228 (H) mm |
| Turning radius | 380 mm | |
| Weight | 76 kg (including battery) | |
| Guidance method | AMR AGV (autonomous switching possible) *1 | |
| Repeatability error (position) | ±1 mm (AGV mode) *Measured in our laboratory environment | |
| Carrying weight | 300 kg (lifting of goods is 100 kg) *2 | |
| Towing weight | 500 kg (including carts, etc.) *3 | |
| Maximum speed | 2.0 m/s *4 | |
| Battery operating time / charging time | 18 hours / 1.8 hours Approximately 11 hours of operation with an average towing of about 200 kg (actual measurement) | |
| Communication method | WiFi IEEE 802.11a/b/g/n | |
| Mounted sensors | LiDAR x 2 / Ultrasonic sensors x 5 / Visual camera / IMU (acceleration sensor) / Temperature sensors x 7 | |
| Operating temperature range | Operation: 0 ~ 40 degrees; Charging: 10 ~ 40 degrees | |
| Cart Connection | Custom cart | Transportable |
| Fork cart | Transportable with a maximum load capacity of 500 kg without modification | |
| 6 - wheel cart | Transportable with a maximum load capacity of 300 kg without modification | |
| Pallet | Transportable in combination with custom carts | |
| Safety | Warning device | Speaker / LED |
| Emergency stop function | Bumper contact sensor / Software emergency stop / Emergency stop button / Software brake system |
※1 Lexx500 has AMR mode (autonomous travel) and AGV mode (orbital travel). ※2/3 May vary depending on the load direction, center of gravity position, and cart type of the load. ※4 Maximum speed is affected by the surrounding environment, the material and condition of the traveling floor, the load of the transported goods, etc.
