QUICK CHANGER SERIES – QCA-25 A Quick Changer Device at the End of A Robot
Main Category
Robot Tool Changer / End-of-Arm Tool Changer (EOAT) / Quick Change System / Automatic Tool Changer / Robotic Tooling Interface / Robot Side / Gripper Side / Tooling Flexibility / Quick Release / Pneumatic Tool Changer / Electric Tool Changer / Hydraulic Tool Changer / Precision Tool Changer / Safety Locking Mechanism / End Effector / Automation / Tool Changing Efficiency / Tool Exchange / Industrial Automation / Robotic End-of-Arm Tooling / Modular Design
Application
End-of-Arm Tooling (EOAT) is widely used in industries such as automotive manufacturing, 3C electronics, logistics, injection molding, food and pharmaceutical packaging, and metal processing. Its main functions include workpiece handling, welding, spraying, inspection, and rapid tool changing. EOAT significantly enhances production efficiency, flexibility, and product quality, making it an essential part of modern industrial automation.
Feature
High-precision
The piston adjusting gripper side play the role of positioning, which provides high repeat positioning accuracy. One million cycle tests show that the actual accuracy is much higher than the recommended value.
High strength
The locking piston with large cylinder diameter has strong locking force, CRG robot end fast device has strong anti torque ability. When locking, there will be no shaking due to high-speed movement, thus avoiding locking failure and ensuring repeated positioning accuracy.
High performance
The locking mechanism with multi conical surface design, long life sealing components and high quality elastic contact probe are adopted to ensure the close contact of signal module.
Specification Parameter
|
Quick Changer Series |
||||
|
Model |
Max. payload |
Gas path |
Locking Force@80Psi (5.5Bar） |
Product weight |
|
QCA-05 |
5kg |
6-M5 |
620N |
0.4kg |
| QCA-05 | 5kg | 6-M5 | 620N | 0.3kg |
| QCA-15 | 15kg | 6-M5 | 1150N | 0.3kg |
| QCA-25 | 25kg | 12-M5 | 2400N | 1.0kg |
| QCA-35 | 35kg | 8-G1/8 | 2900N | 1.4kg |
| QCA-50 | 50kg | 9-G1/8 | 4600N | 1.7kg |
| QCA-S50 | 50kg | 8-G1/8 | 5650N | 1.9kg |
| QCA-100 | 100kg | 7-G3/8 | 12000N | 5.2kg |
| QCA-S100 | 100kg | 5-G3/8 | 12000N | 3.7kg |
| QCA-S150 | 150kg | 8-G3/8 | 12000N | 6.2kg |
| QCA-200 | 300kg | 12-G3/8 | 16000N | 9.0kg |
| QCA-200D1 | 300kg | 8-G3/8 | 16000N | 9.0kg |
| QCA-S350 | 350kg | / | 31000N | 9.4kg |
| QCA-S500 | 500kg | / | 37800N | 23.4kg |

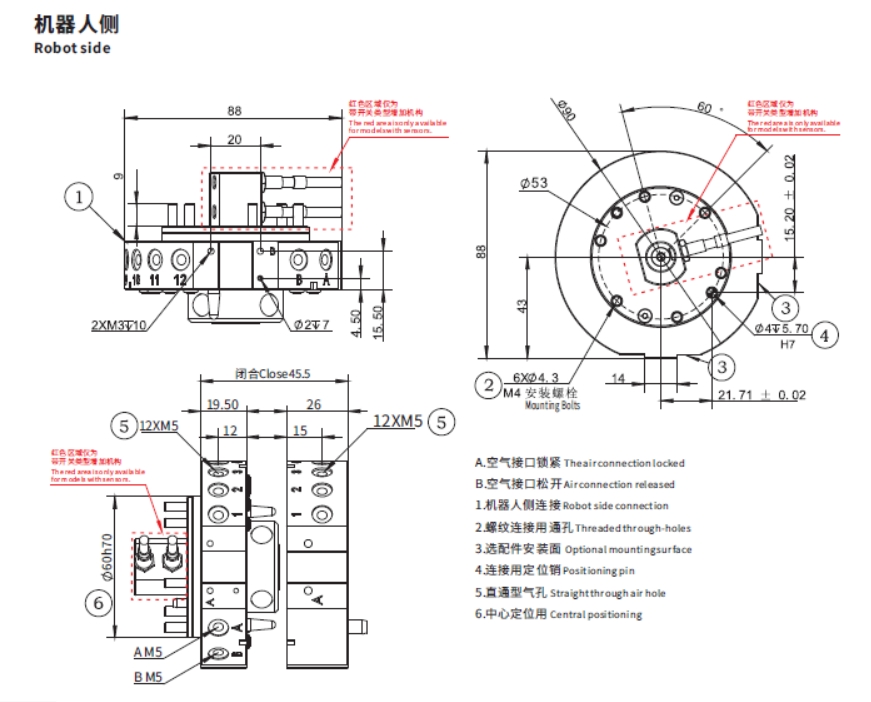

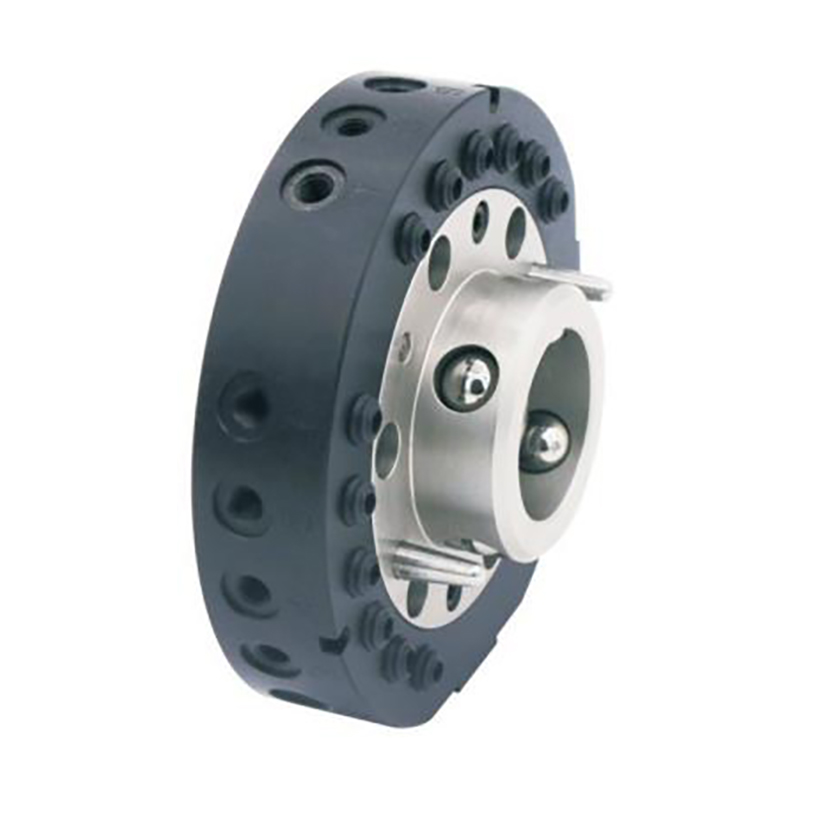

Robot side

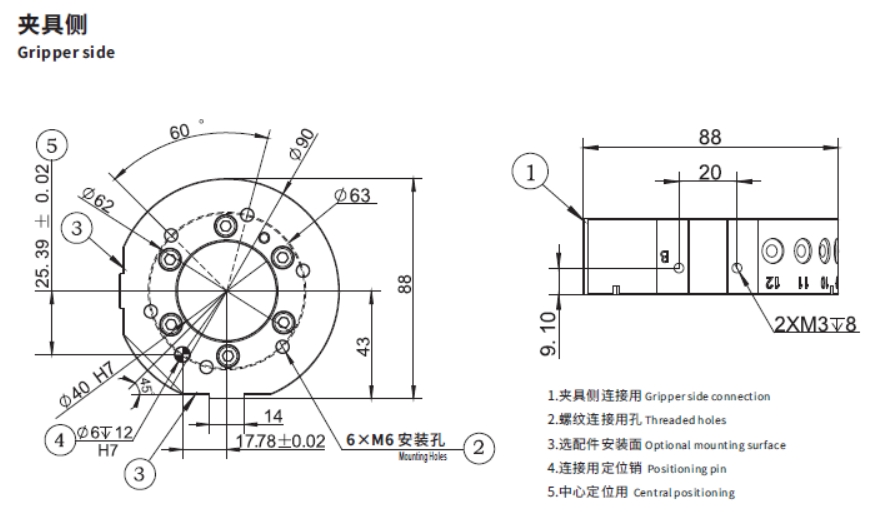

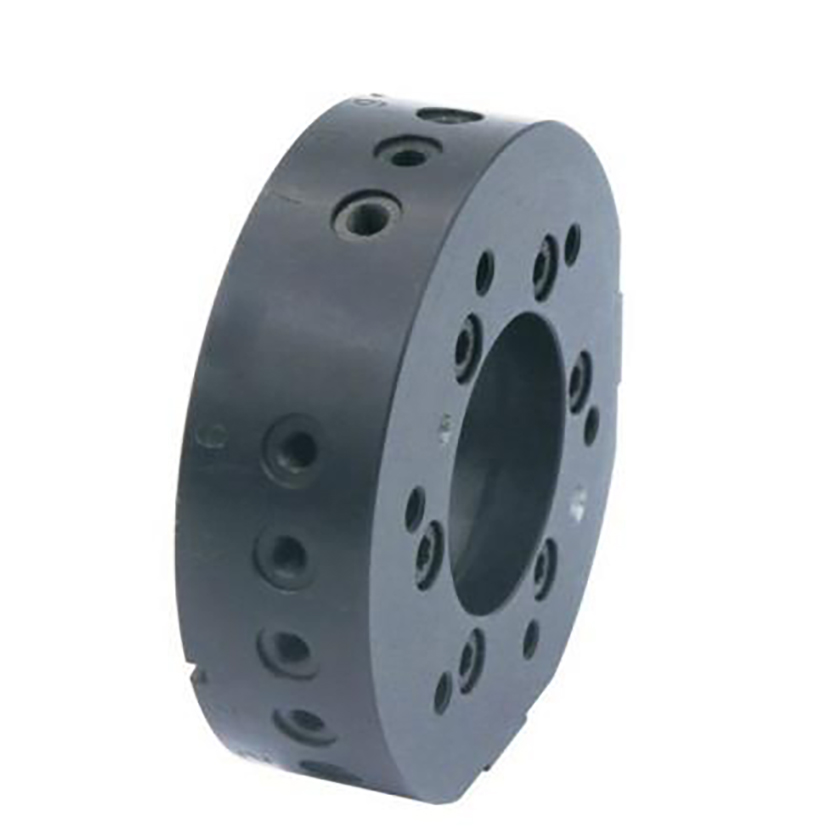

Gripper side

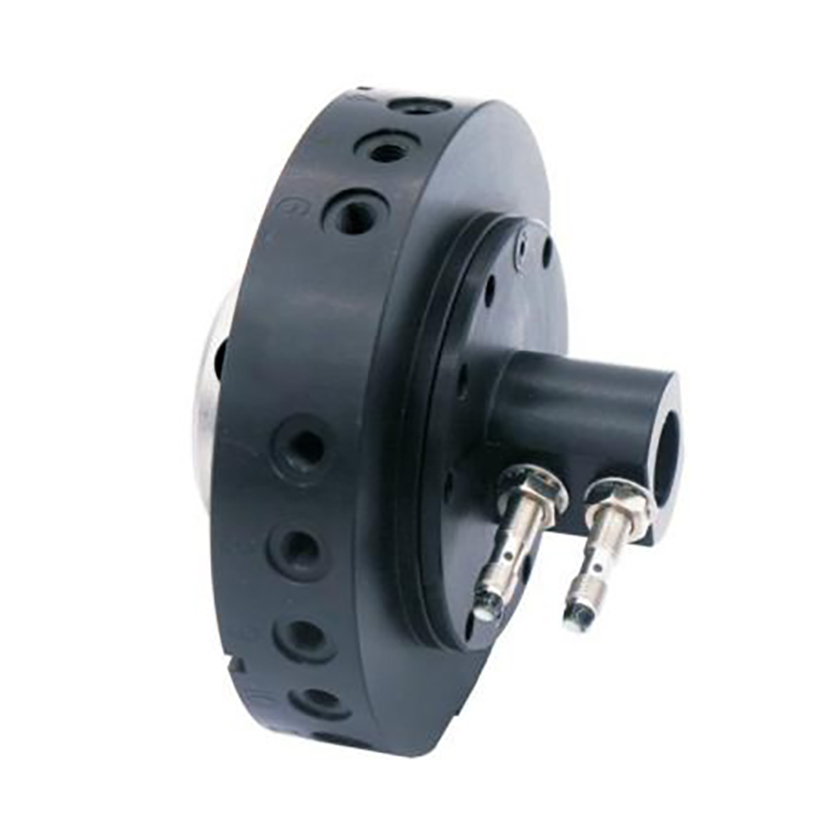

Robot side strap switch
Applicable Module
Module Type
| Product Name | Model | PN | Working Voltage | Working Current | Connector | Connector PN |
| Robot side signal module | QCSM-15R1 | 7.Y00965 | 24V | 2.5A | DB15R1-1000① | 1.Y10163 |
| Gripper side signal module | QCSM-15G1 | 7.Y00966 | 24V | 2.5A | DB15G1-1000① | 1.Y10437 |
①The cable's length is 1 meter
HF Module-straight Out Line
| Product Name | Model | PN |
| Robot side high frequency module | QCHFM-02R-1000 | 7.Y02086 |
| Gripper side high frequency module | QCHFM-02G-1000 | 7.Y02087 |
15-core Electric Module-straight Out Line
| Product Name | Model | PN |
| Robot side 15-core electric module | QCHFM-15R1-1000 | 7.Y02097 |
| Gripper side 15-core electric module | QCHFM-15G1-1000 | 7.Y02098 |
Power Module-straight Out Line
| Product Name | Model | PN |
| Robot side high frequency module | QCSM-08R-1000 | 7.Y02084 |
| Gripper side high frequency module | QCSM-08G-1000 | 7.Y02085 |
RJ45S Network Cable Interface
| Product Name | Model | PN |
| Robot side RJ455 servo module | QCSM-RJ45*5M-06R | 7.Y02129 |
| Gripper side RJ455 servo module | QCSM-RJ45*5M-06G | 7.Y02129 |
