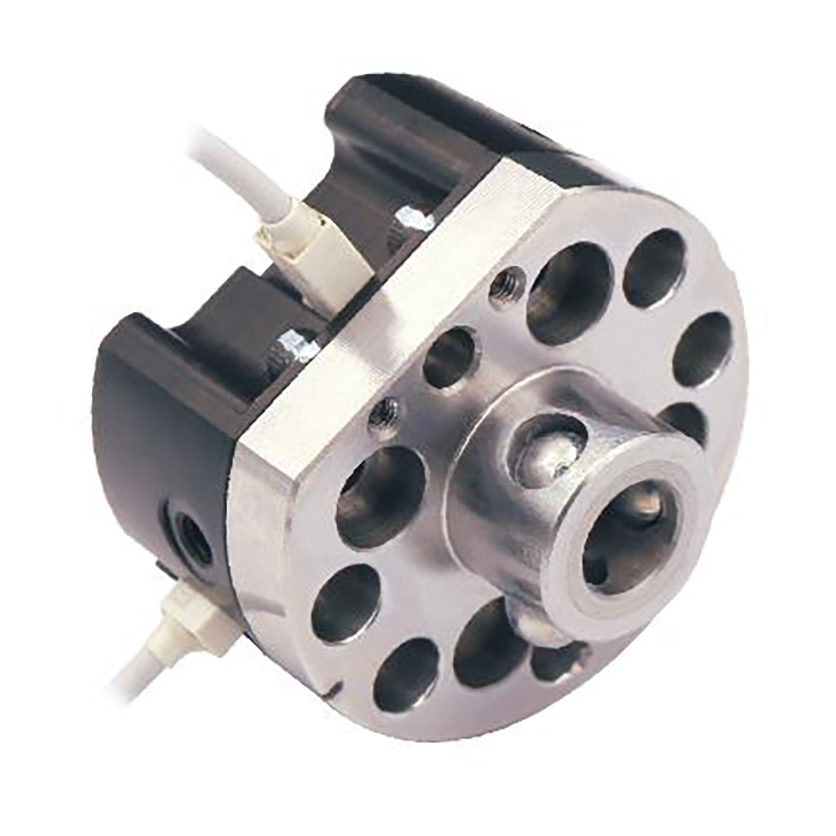

QUICK CHANGER SERIES – QCA-05 A New Quick Changer Device at the End of A Robot
Main Category
Robot Tool Changer / End-of-Arm Tool Changer (EOAT) / Quick Change System / Automatic Tool Changer / Robotic Tooling Interface / Robot Side / Gripper Side / Tooling Flexibility / Quick Release / Pneumatic Tool Changer / Electric Tool Changer / Hydraulic Tool Changer / Precision Tool Changer / Safety Locking Mechanism / End Effector / Automation / Tool Changing Efficiency / Tool Exchange / Industrial Automation / Robotic End-of-Arm Tooling / Modular Design
Application
End-of-Arm Tooling (EOAT) is widely used in industries such as automotive manufacturing, 3C electronics, logistics, injection molding, food and pharmaceutical packaging, and metal processing. Its main functions include workpiece handling, welding, spraying, inspection, and rapid tool changing. EOAT significantly enhances production efficiency, flexibility, and product quality, making it an essential part of modern industrial automation.
Feature
High-precision
The piston adjusting gripper side play the role of positioning, which provides high repeat positioning accuracy. One million cycle tests show that the actual accuracy is much higher than the recommended value.
High strength
The locking piston with large cylinder diameter has strong locking force, CRG robot end fast device has strong anti torque ability. When locking, there will be no shaking due to high-speed movement, thus avoiding locking failure and ensuring repeated positioning accuracy.
High performance
The locking mechanism with multi conical surface design, long life sealing components and high quality elastic contact probe are adopted to ensure the close contact of signal module.
Specification Parameter
|
Quick Changer Series |
||||
|
Model |
Max. payload |
Gas path |
Locking Force@80Psi (5.5Bar） |
Product weight |
|
QCA-05 |
5kg |
6-M5 |
620N |
0.4kg |
| QCA-05 | 5kg | 6-M5 | 620N | 0.3kg |
| QCA-15 | 15kg | 6-M5 | 1150N | 0.3kg |
| QCA-25 | 25kg | 12-M5 | 2400N | 1.0kg |
| QCA-35 | 35kg | 8-G1/8 | 2900N | 1.4kg |
| QCA-50 | 50kg | 9-G1/8 | 4600N | 1.7kg |
| QCA-S50 | 50kg | 8-G1/8 | 5650N | 1.9kg |
| QCA-100 | 100kg | 7-G3/8 | 12000N | 5.2kg |
| QCA-S100 | 100kg | 5-G3/8 | 12000N | 3.7kg |
| QCA-S150 | 150kg | 8-G3/8 | 12000N | 6.2kg |
| QCA-200 | 300kg | 12-G3/8 | 16000N | 9.0kg |
| QCA-200D1 | 300kg | 8-G3/8 | 16000N | 9.0kg |
| QCA-S350 | 350kg | / | 31000N | 9.4kg |
| QCA-S500 | 500kg | / | 37800N | 23.4kg |
Applicable Module
1. Mounting screws and magnetic switch sensor
2. There are no standard modules on the main disk side and tool disk side
3. Locking mode: steel ball locking
