QUICK CHANGER SERIES – QC-150 Round Manual Quick Changer
Main Category
Robot Tool Changer / End-of-Arm Tool Changer (EOAT) / Quick Change System / Automatic Tool Changer / Robotic Tooling Interface / Robot Side / Gripper Side / Tooling Flexibility / Quick Release / Pneumatic Tool Changer / Electric Tool Changer / Hydraulic Tool Changer / Precision Tool Changer / Safety Locking Mechanism / End Effector / Automation / Tool Changing Efficiency / Tool Exchange / Industrial Automation / Robotic End-of-Arm Tooling / Modular Design
Application
End-of-Arm Tooling (EOAT) is widely used in industries such as automotive manufacturing, 3C electronics, logistics, injection molding, food and pharmaceutical packaging, and metal processing. Its main functions include workpiece handling, welding, spraying, inspection, and rapid tool changing. EOAT significantly enhances production efficiency, flexibility, and product quality, making it an essential part of modern industrial automation.
Feature
High-precision
The piston adjusting gripper side play the role of positioning, which provides high repeat positioning accuracy. One million cycle tests show that the actual accuracy is much higher than the recommended value.
High strength
The locking piston with large cylinder diameter has strong locking force, SCIC robot end fast device has strong anti torque ability. When locking, there will be no shaking due to high-speed movement, thus avoiding locking failure and ensuring repeated positioning accuracy.
High performance
The locking mechanism with multi conical surface design, long life sealing components and high quality elastic contact probe are adopted to ensure the close contact of signal module.
Specification Parameter
|
Quick Changer Series |
|||||
|
Model |
QC50 |
QC90 |
QC150 |
QC160 |
QC200 |
|
Medium |
Filtered compressed air |
||||
| Pressure range | 5~6 bar |
||||
| Temperature range | 5 ~ 60 °C | ||||
| Robot side quick changer | QC-R50K | QC-R90K | QC-R150K | QC-R160K | QC-R200K |
| Robot side quick changer weight | 103 g | 318 g | 1159 g | 1200 g | 2640 g |
| Gripper side quick changer | QC-G50 | QC-G90 | QC-G150 | QC-G160 | QC-G200 |
| Gripper side quick changer weight | 65 g | 227 g | 837g | 900 g | 1890 g |
| F | 150N | 400N | 1000N | 1000N | 2000N |
| Mt | 20Nm | 100Nm | 250Nm | 250Nm | 600Nm |
| Mb | 10Nm | 60Nm | 150Nm | 150Nm | 300Nm |
| Recommended payload | 5kg | 15kg | 35kg | 35kg | 75kg |
| Colour | Brass | Brass | Black | Brass | Black |

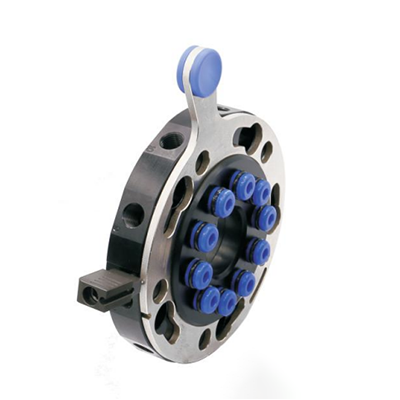

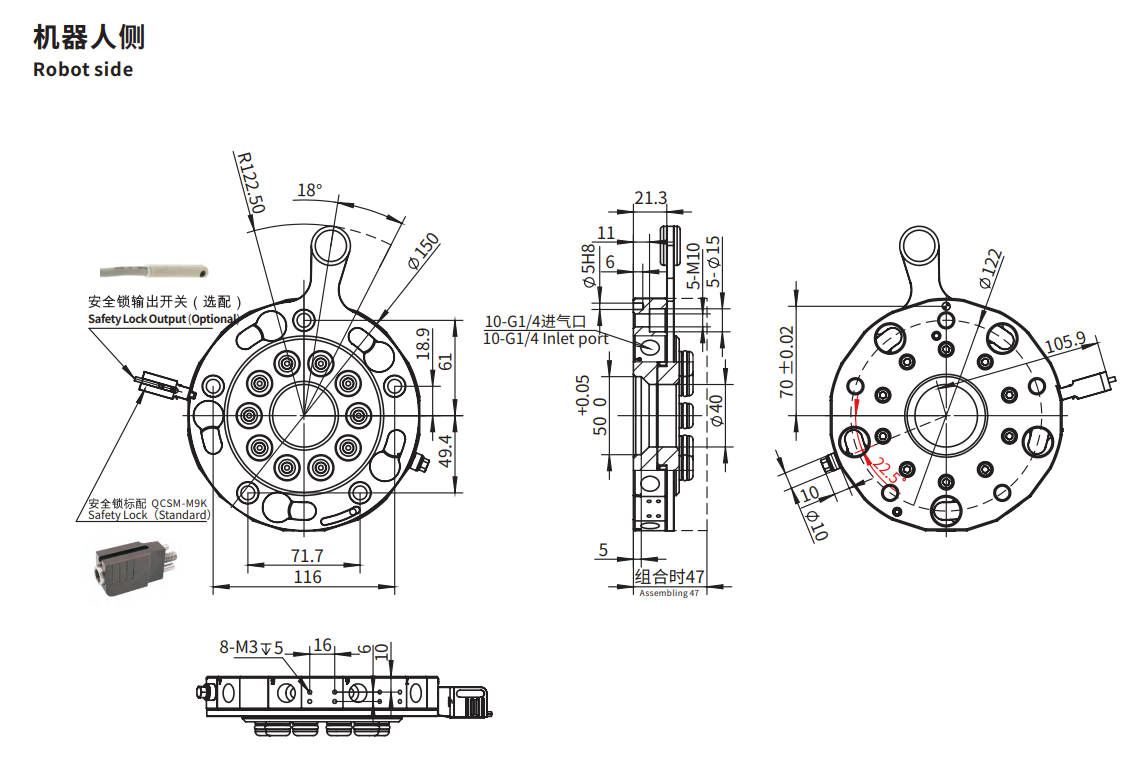

Robot side

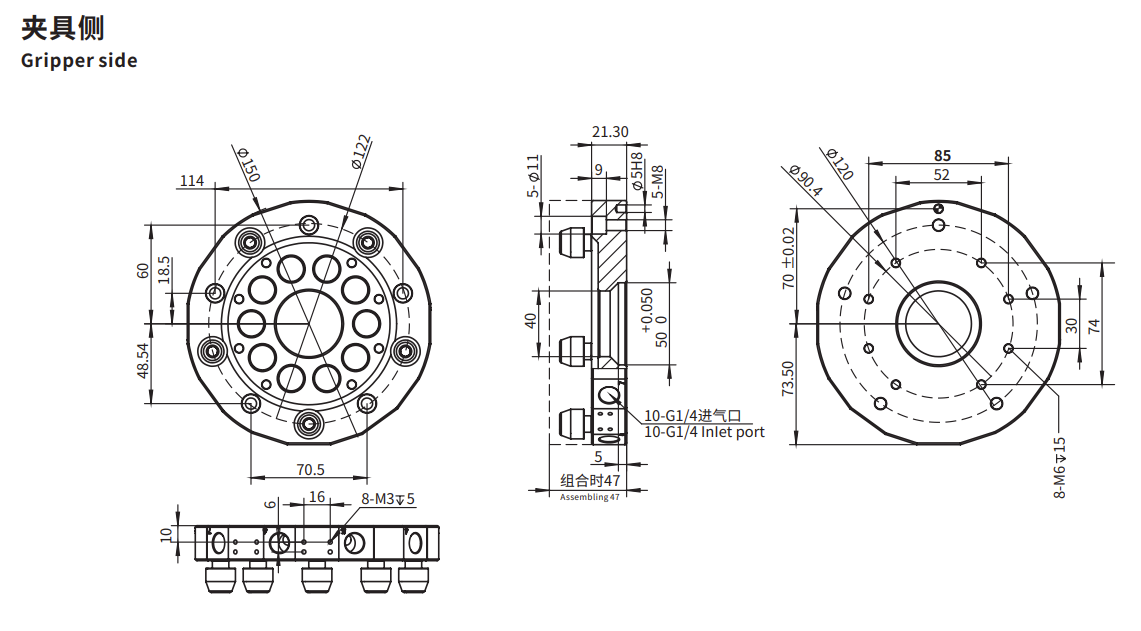

Gripper side
Module Type
| Product Name | Model | PN | I/O connection type | Working Current | Cable |
| Robot side signal module | QCSM-9R3 | 7.Y00819 | 9 pins D-SUB | MAX 3A | R9-1000(1.Y06423) |
| Gripper side signal module | QCSM-9G3 | 7.Y00820 | 9 pins D-SUB | MAX 3A | G9-1000(1.Y06424) |
*R9-1000、G9-1000 option, the cable’s length is 1 meter
Accessories
Electrical connection module
• I/O quick change by D-SUB 9 pins connector
The two parts are supplied separately.
QCSM-9R2 robot side signal module.
QCSM-9G2 gripper side signal module.
R9-1000 45 degree metal female fitting.
G9-1000 45 degree metal male fitting.
